Correct superheat and subcooling analysis starts with stable, accurate pressure and temperature measurement.

What superheat and subcooling really mean

Superheat is the temperature of refrigerant vapor above its saturation temperature at suction pressure. If suction pressure corresponds to a 0°C saturation temperature and the suction line actually measures 7°C, then superheat is 7°C. That tells you whether the evaporator is being fed properly or is running dry too early.

Subcooling is the temperature of liquid refrigerant below its saturation temperature at condensing pressure. If condensing pressure corresponds to 40°C saturation and the liquid line measures 34°C, then subcooling is 6°C. That indicates how stable the liquid column is before the expansion device.

Superheat belongs to the evaporator and suction side. Subcooling belongs to the condenser and liquid side. One protects the compressor from floodback, the other protects the expansion valve from flash gas.

Why they matter more than pressure alone

Pressure readings by themselves can mislead even experienced technicians. Low suction pressure may suggest low charge, but the real cause could be a restricted filter-drier, a starved TXV, or unstable load. Superheat and subcooling add context by showing how refrigerant is actually moving through the system.

  • High superheat + low subcooling usually points toward undercharge or flash gas.
  • High superheat + normal/high subcooling often suggests a liquid-line restriction or TXV issue.
  • Very low superheat + normal subcooling indicates floodback risk.
  • Normal superheat + high subcooling may indicate overcharge.
Table 1 — What each value tells you
Indicator Measured at Diagnostic role Main risk when out of range
Superheat Evaporator outlet / suction line Evaporator feeding quality and compressor safety Floodback or excessive dry suction
Subcooling Condenser outlet / liquid line Liquid quality and charge stability Flash gas or overcharge

How to measure them correctly in the field

Bad measurements lead to bad decisions. Before you take readings, the system must be operating under reasonably stable load. Avoid making decisions during startup, right after defrost, or when the refrigerated space is clearly unstable.

Superheat measurement steps

  1. Measure suction pressure at a reliable service point.
  2. Convert that pressure into saturation temperature using a PT chart or digital gauge.
  3. Measure actual suction line temperature with a properly clamped and insulated probe.
  4. Subtract saturation temperature from actual line temperature.

Subcooling measurement steps

  1. Measure condensing or liquid-line pressure at the correct point.
  2. Convert it into saturation temperature.
  3. Measure actual liquid-line temperature after the condenser or receiver, depending on design.
  4. Subtract actual liquid-line temperature from saturation temperature.
Common mistake: measuring suction temperature near the compressor and comparing it to evaporator saturation temperature. That gives total superheat, not evaporator outlet superheat, and the difference can be significant if the suction line is long or poorly insulated.

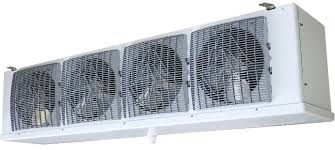

Industrial refrigeration evaporator where suction temperature and pressure are used to calculate superheat
At the evaporator, superheat reveals feeding quality far better than suction pressure alone.

Normal operating ranges

There is no universal number for every system. Acceptable values depend on refrigerant, evaporator design, line lengths, expansion device type, and the nature of the load. Still, there are field-proven ranges that work as a solid starting point.

Table 2 — Typical field reference ranges
Application Evaporator superheat Subcooling Operational note
Medium-temperature cold rooms 5 to 8°C 4 to 8°C Common TXV target band
Low-temperature freezer rooms 6 to 10°C 5 to 10°C More compressor protection margin
Small commercial condensing units 8 to 12°C 3 to 6°C Strongly affected by short line layout
Electronically controlled EEV systems 4 to 7°C 4 to 9°C Better stability under changing load

Fault diagnosis matrix

The real value of these readings appears when you combine them with suction pressure, discharge temperature, liquid-line behavior, and visual inspection. The table below is one of the most practical service references for field diagnosis.

Table 3 — Diagnostic decision matrix
Superheat Subcooling Most likely condition Correct next action
High Low Undercharge or flash gas Check for leaks, verify charge history, inspect liquid line
High Normal / high Restricted filter-drier or starved TXV Measure temperature drop across drier and inspect TXV sensing bulb
Very low Normal Overfeeding TXV / floodback risk Readjust valve gradually and monitor suction condition
Low High Overcharge or excess condenser fill Review actual charge weight and receiver behavior
Normal Low Poor condensing performance Clean condenser, inspect fans, verify airflow and approach
Adding charge without checking subcooling, or adjusting a TXV without checking superheat, often treats the symptom while leaving the root cause untouched. The result is higher energy use, hotter discharge gas, and shorter compressor life.

TXV and EEV tuning logic

A TXV exists to maintain a reasonably stable evaporator outlet superheat. That means every adjustment must be evaluated by observing how superheat responds after the system has had enough time to stabilize. Rapid, repeated turns create confusion rather than control.

In EEV-based systems, the controller automates this process, but manual verification is still essential during commissioning and troubleshooting. A bad sensor location or a drifting pressure transducer will make the controller act decisively on bad data.

Danfoss refrigeration control hardware used with electronic expansion valves to manage superheat
With EEV systems, sensor quality and placement are part of control quality.
Table 4 — Common expansion valve setup mistakes
Mistake Direct effect What you will see
Opening the TXV too quickly Floodback risk Superheat drops rapidly to very low values
Closing the TXV too much Starved evaporator High superheat with low suction pressure
Poor sensing bulb mounting Misleading feedback to the valve Unstable feeding and erratic readings
Bad thermal insulation around the bulb Ambient heat influence Valve opens illogically in hot surroundings

Saudi hot-climate effects on readings

In Dammam, Riyadh, and Jeddah, rooftop condensing units can operate in ambient temperatures above 45°C. That raises condensing pressure and makes the condenser much more sensitive to dirt, restricted airflow, and weak fan performance. Subcooling must always be interpreted in that real-world context.

  • Condenser cleaning is mandatory before meaningful analysis.
  • Review compressor and fan current draw together with thermal readings.
  • Do not trust a single reading during unstable load or open-door operation.
  • On exposed roofs, liquid-line insulation quality matters more than many teams expect.
In many Eastern Province service calls, the most common mistake is not true undercharge. It is misdiagnosing undercharge when the real issue is a dirty condenser, poor airflow, or unstable measurement conditions after defrost.

Commissioning and acceptance checklist

During startup or after major service, record baseline values for the system. Those readings become the reference point for every future complaint and maintenance decision.

Table 5 — Baseline commissioning checklist
Item What to document Why it matters
Refrigerant type and charge weight Refrigerant designation and actual charge Critical reference for all later service
Superheat At evaporator outlet and compressor if relevant Separates evaporator condition from line gain
Subcooling After condenser / receiver Confirms liquid quality and charge stability
Amperage and temperatures Compressor, fans, air in/out Links thermal condition to electrical load
Insulation and filter condition Photos and field notes Speeds up future troubleshooting

Frequently asked questions

What is the practical difference between superheat and subcooling?

Superheat shows how the evaporator is feeding and whether the compressor is protected from liquid floodback. Subcooling shows whether a solid column of liquid is reaching the expansion device.

Does high superheat always mean low refrigerant charge?

No. It may also indicate a restricted filter-drier, an underfeeding TXV, poor bulb mounting, or low evaporator load.

What is a good subcooling target?

Many cold room systems operate well around 4 to 8°C, but the exact target should be matched to the equipment design and manufacturer data.

Should I tune a TXV during unstable load?

No. Always wait for stable conditions after startup, defrost, and major load disturbances before making an adjustment.

What should I do before adding refrigerant?

Check for leaks, inspect condenser cleanliness, verify subcooling, and rule out restrictions or valve control issues. Adding charge should follow diagnosis, not replace it.

Conclusion

Professional refrigeration diagnosis does not begin with pressure alone. It begins with a better question: what are the superheat and subcooling values telling us? Once those two values are read correctly, you can distinguish between charge issues, feed issues, condensing problems, and measurement error with much greater confidence.
